FENDER '83 STRATOCASTER ELITE Lefty,
Sunburst, Excellent plus Cond, Active Circuit
code LH43

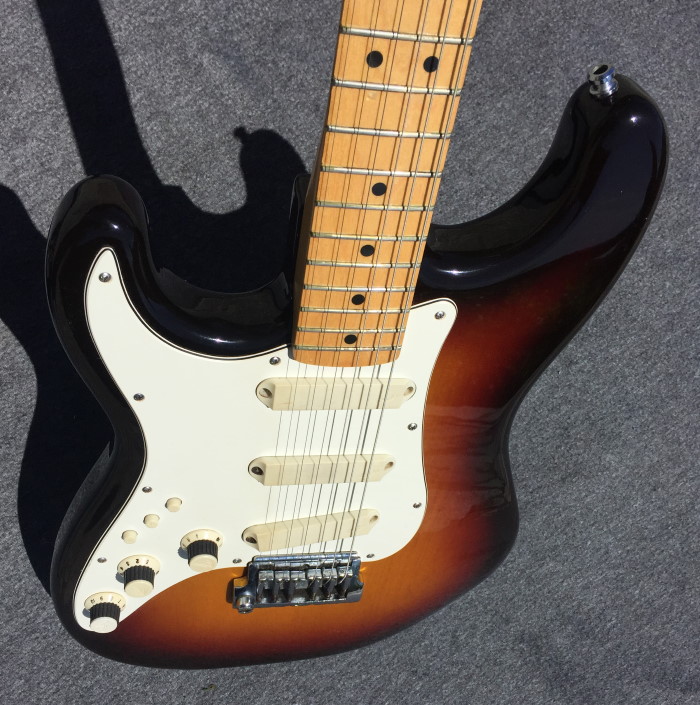

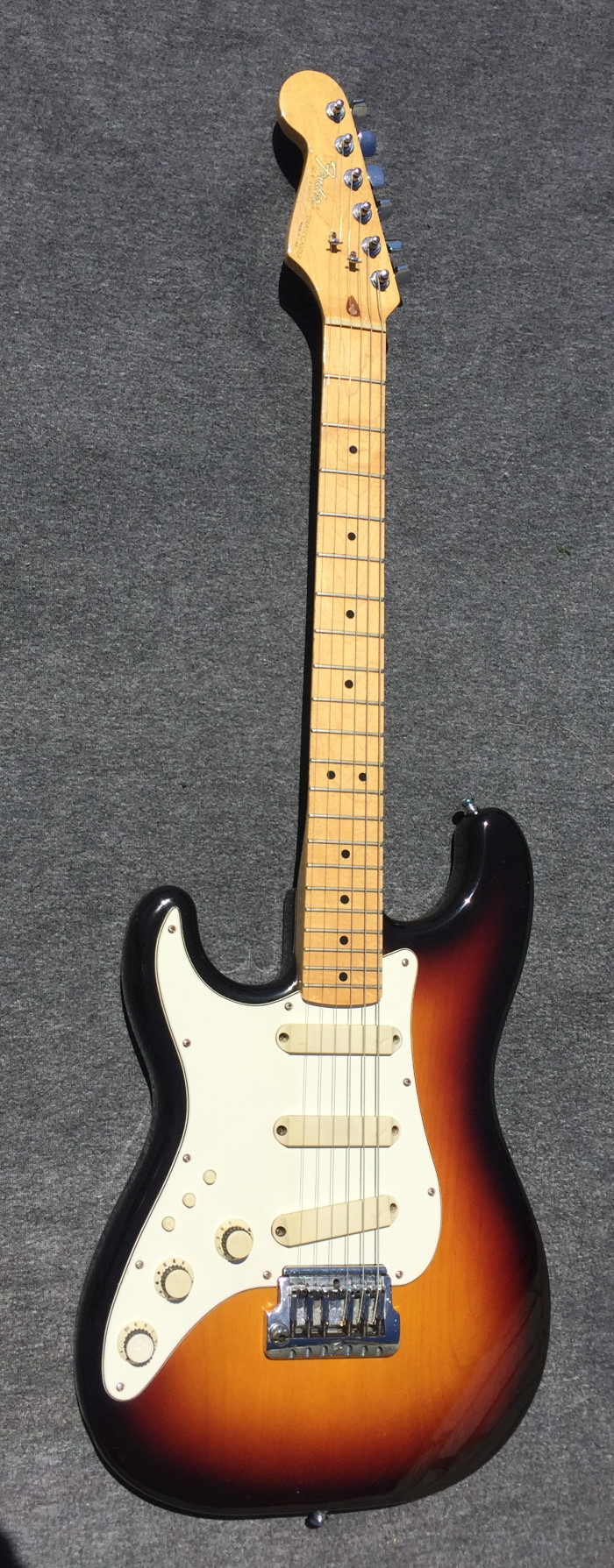

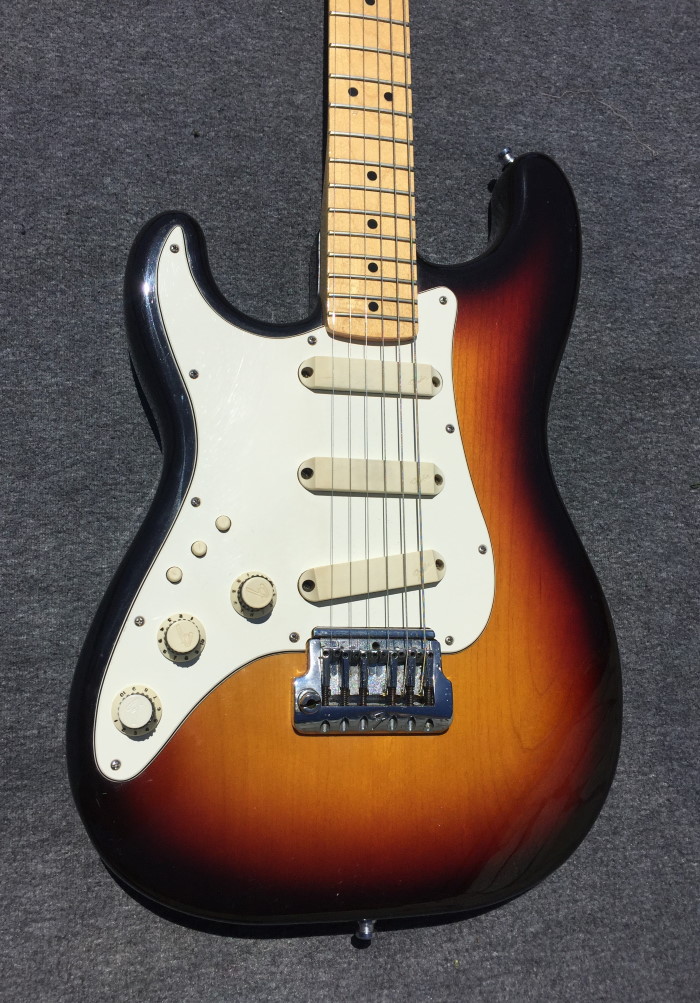

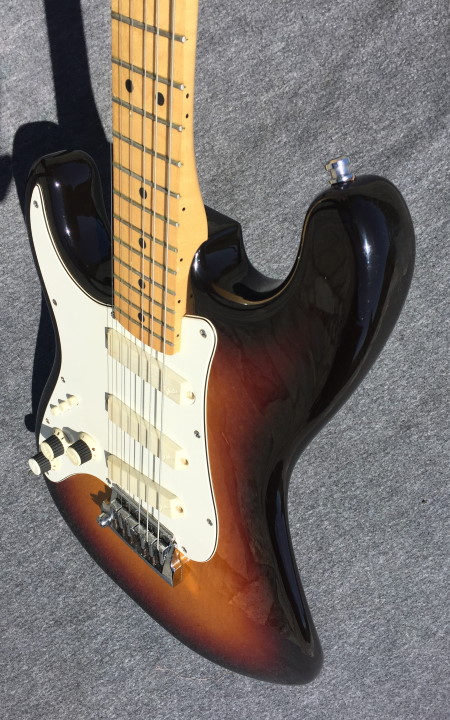

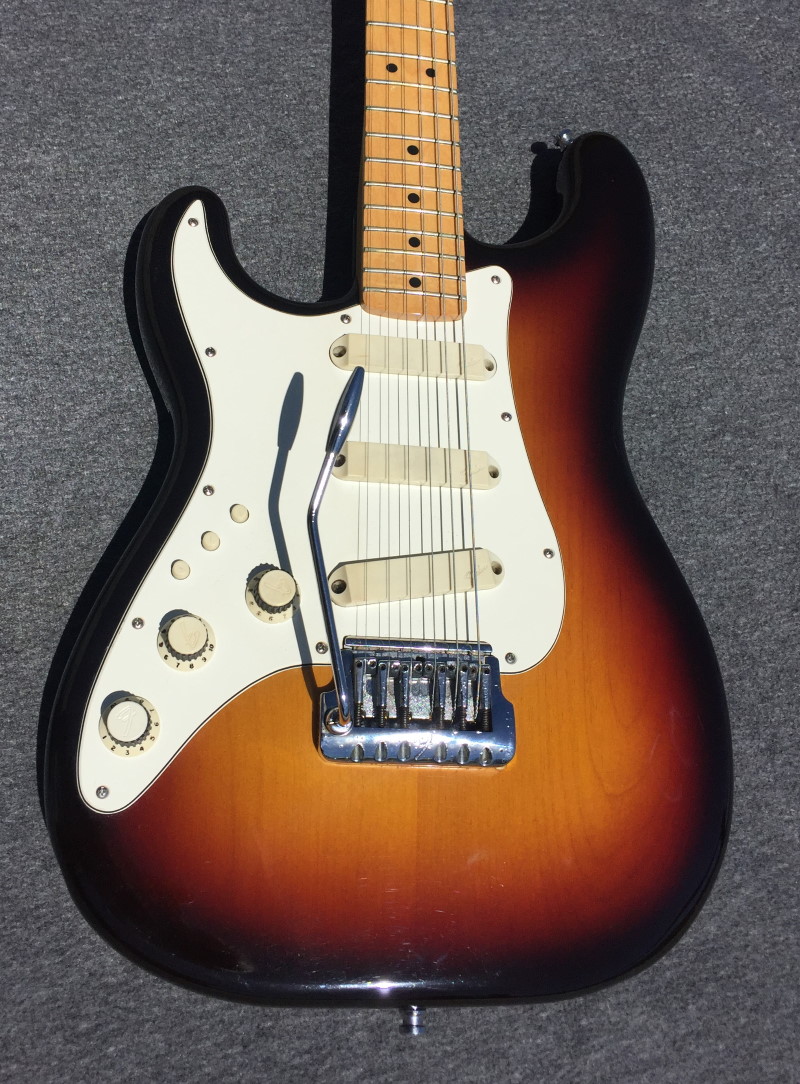

1983 Fender Stratocaster Elite Made in Usa In Excellent

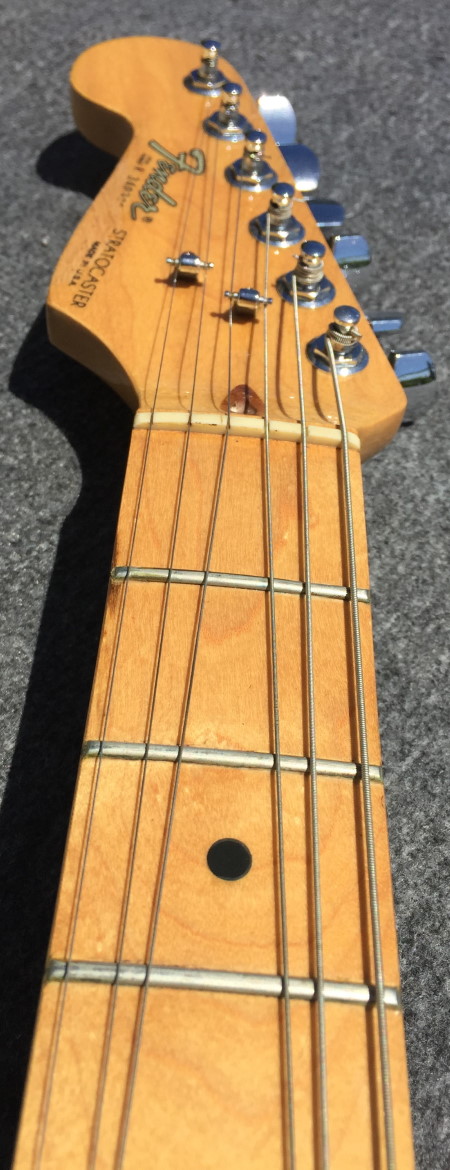

Overall Condition Original Sunburst Finish Maple Neck 12" Radius Original Fender
Noise Cancelling Pickups With Active Pre-Amp (MDX/TBX) 5-way pickup selector
switch. Original Frets and Hardware in Very Good Condition. Alder Body, Maple

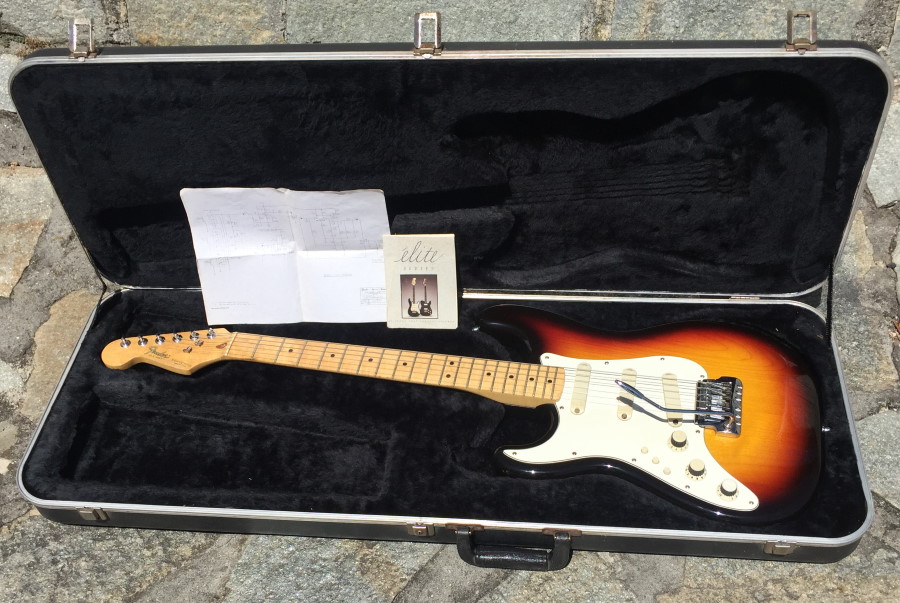

Neck and Fingerboard Low action Comes With The Fender Molded Hardshell Case Trem
Arm and Tag
From: The Fender Stratocaster Book. A. Duchossoir (1989).
Fender started work on the designs for the ELITE series in late 1981 with a
research and design team that included Dan Smith, Chip Todd. John Page, Charlie
Gressett and Freddie Tavares. The Elite series was meant to combine modern
technologies with the classic Stratocaster design. The electronics, vibrato and
neck adjustment mechanisms were all to be improved. To this end the Elite
Stratocasters included active electronics, refined Freeflyte tremolo bridges and
Biflex trussrods. When the Elite Stratocaster was finally released in 1983 it
included numerous new features:

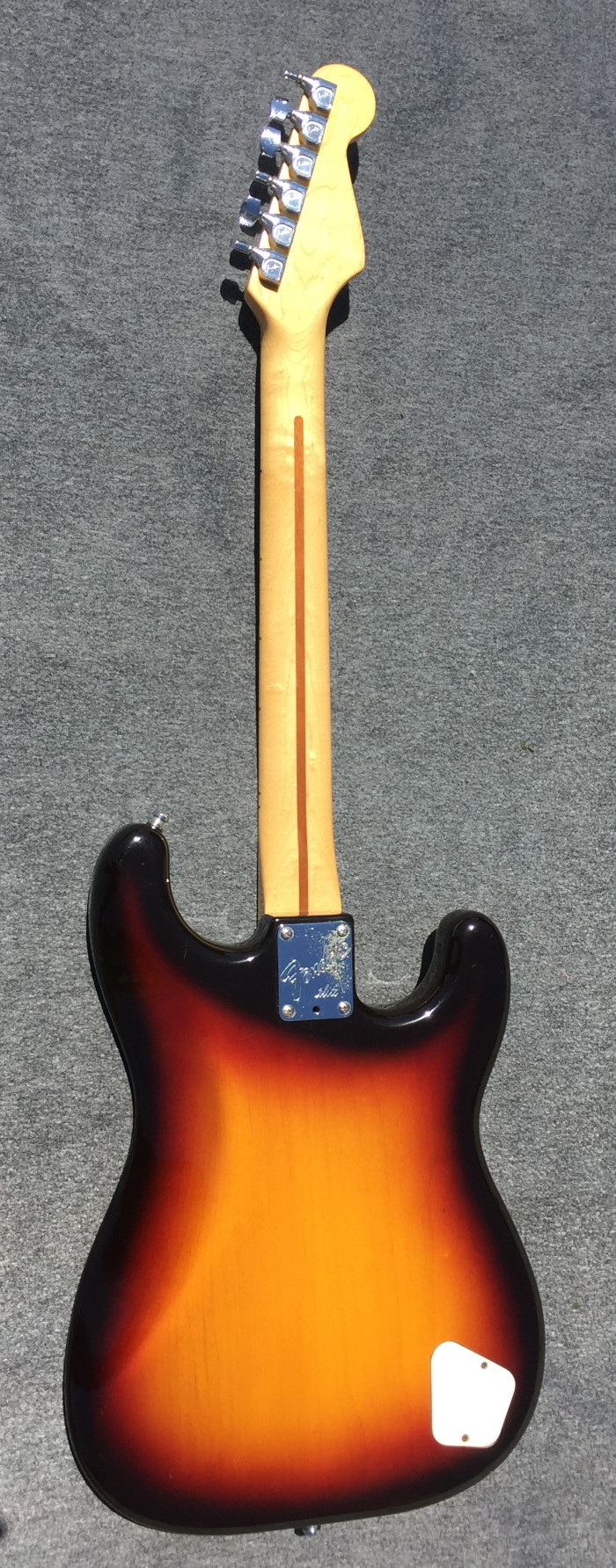

- Biflex truss rod adjustment (installed from the rear - with skunk

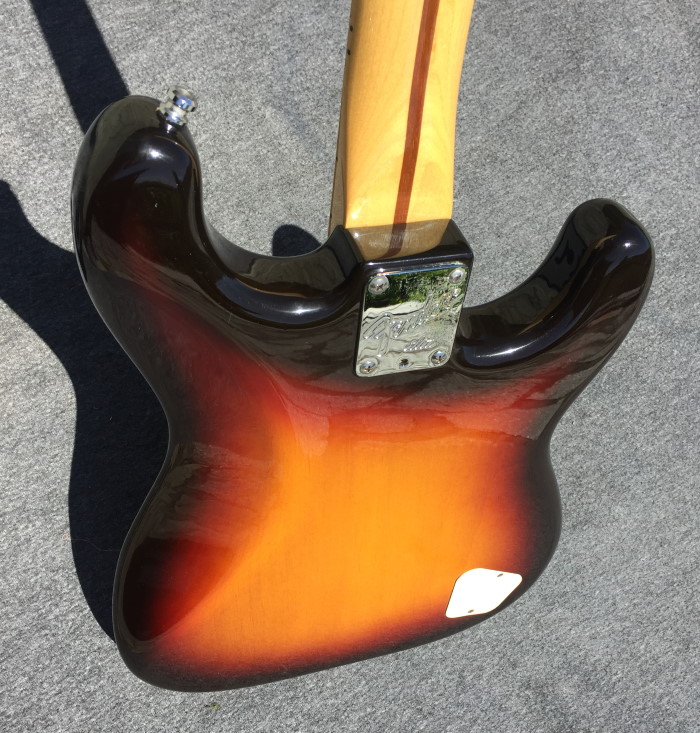

stripe on neck) with a neck angle adjuster located in the neck plate

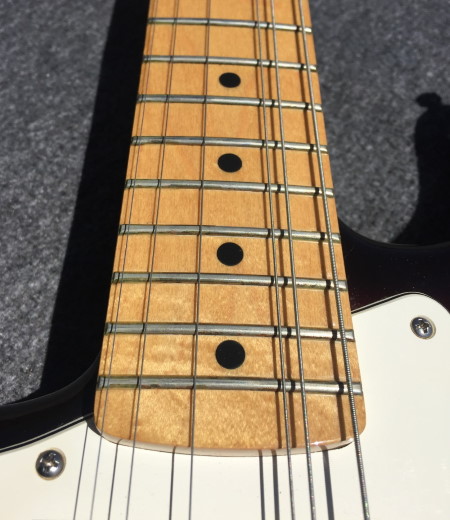

- Slightly wider nut width and flatter 12 inch fretboard radius

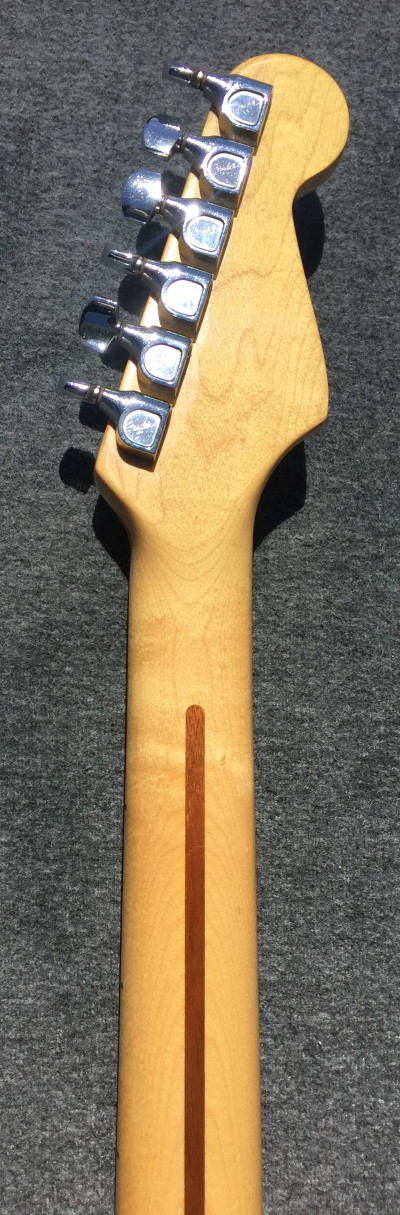

- Ezy-Glyder point contact string retainers and high ratio, low
backlash machine heads with specially lubricated tuning gears
- Security lock strap buttons

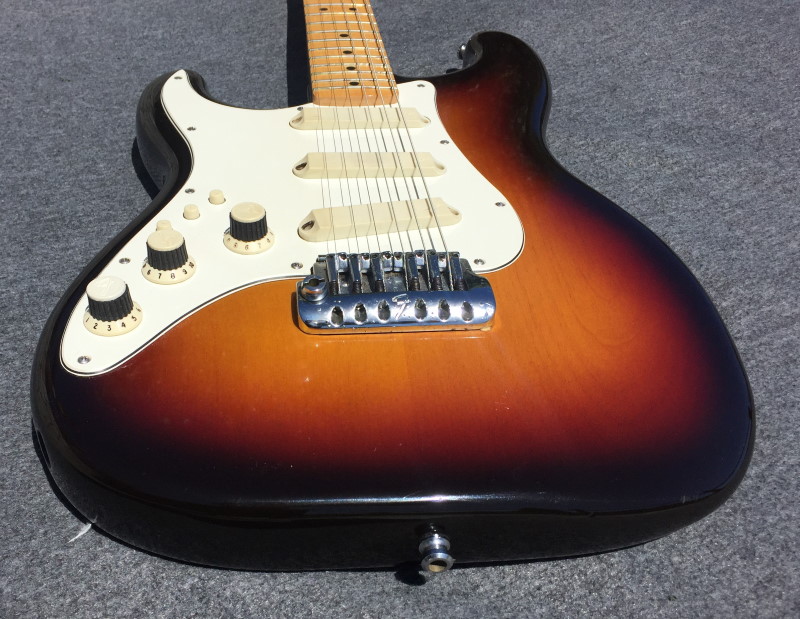

- Heavy duty cast bridge assembly with 'drop-in' string loading,
Freeflyte tremolo system with tension adjustable from the top and snap-in
Torq-Master tremolo arm. There was no backplate or recess in the back of the
body for tremolo springs.
- Alnico II single coil pickups without protruding poles,
noise-cancelling pickup system with a dummy coil between the lead and the
middle pickups and active electronics with a special preamp circuit
including MDX (mid-range) and TBX (high-range) controls. There was a small

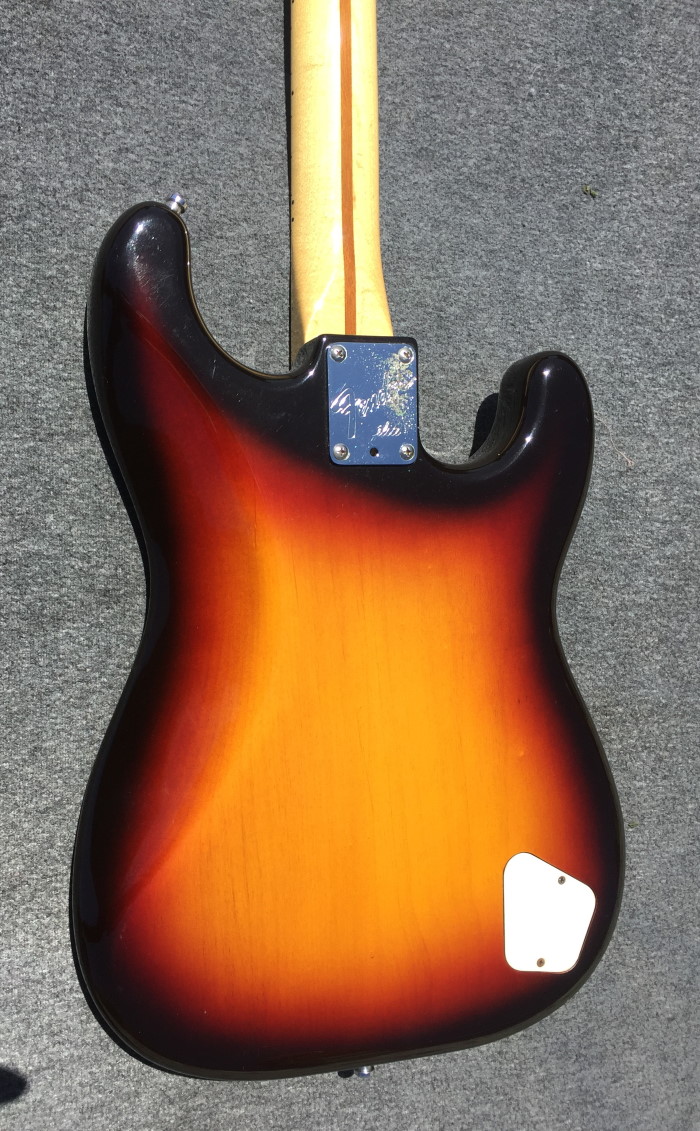

backplate near the edge covering the 9-volt battery for the active circuitry.

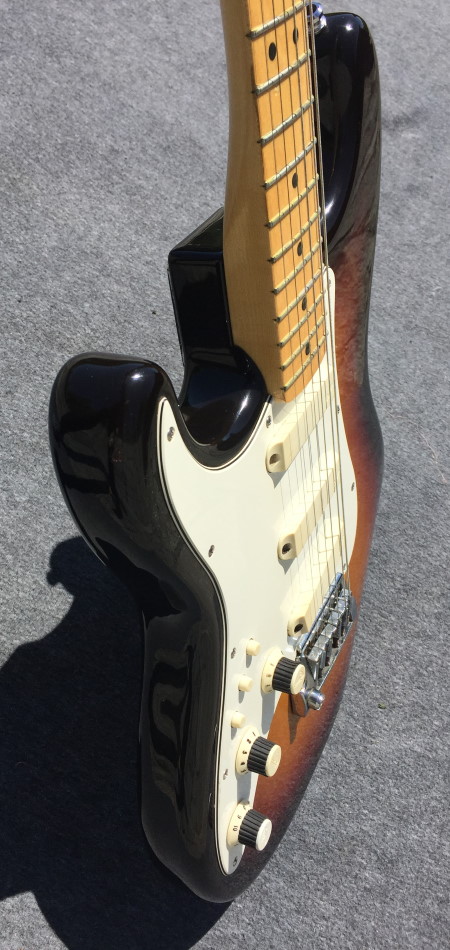

- three separate pickup push-on-off selector switches, an edge-mounted
jack output and control knobs with a serrated rubber insert
