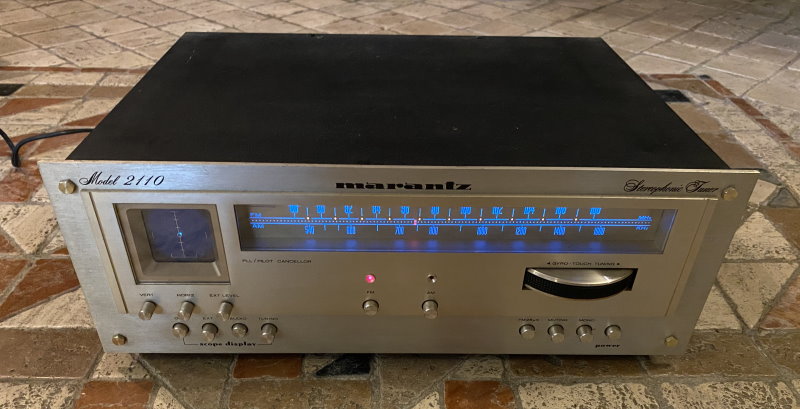

1978 MARANTZ Mod 2110 with scope - 117 Volts - VERY heavy Weight: 7.4 kg / 16 lb 4.8 oz (16.3 lb)
Rare Marantz 2110 Stereo Hifi Tuner Oscilloscope FM/MW Radio Receiver. Works perfectly, excellent reception properties.
This is one of the
better tuners that Marantz produced in the vintage era. The Model 2110 features

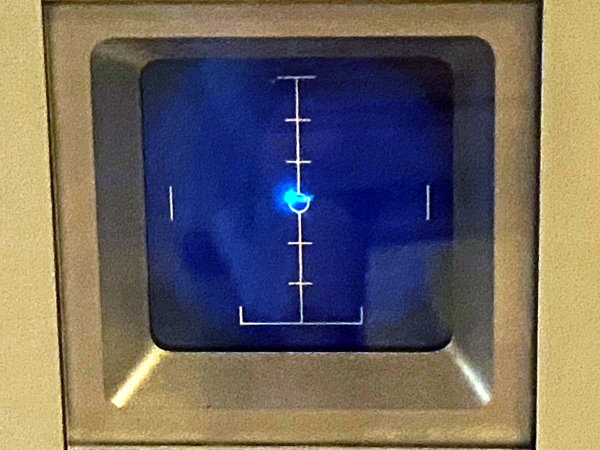

a fully working scope for audio and FM signal levels, Gyro Touch Tuning, Dolby

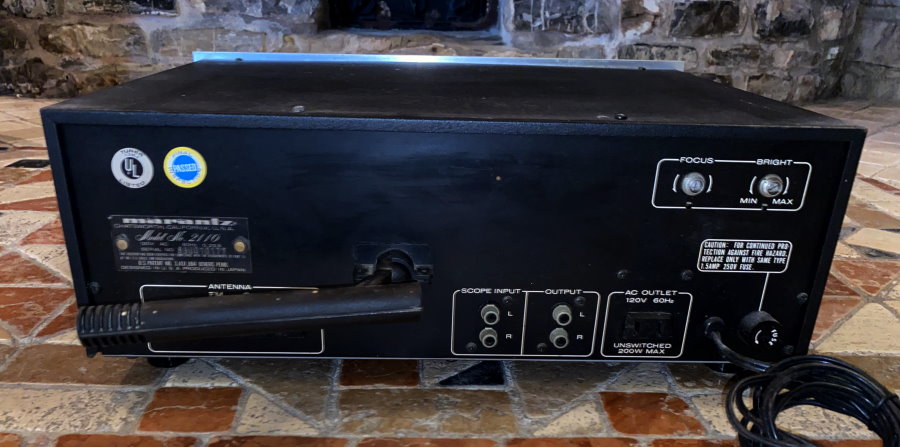

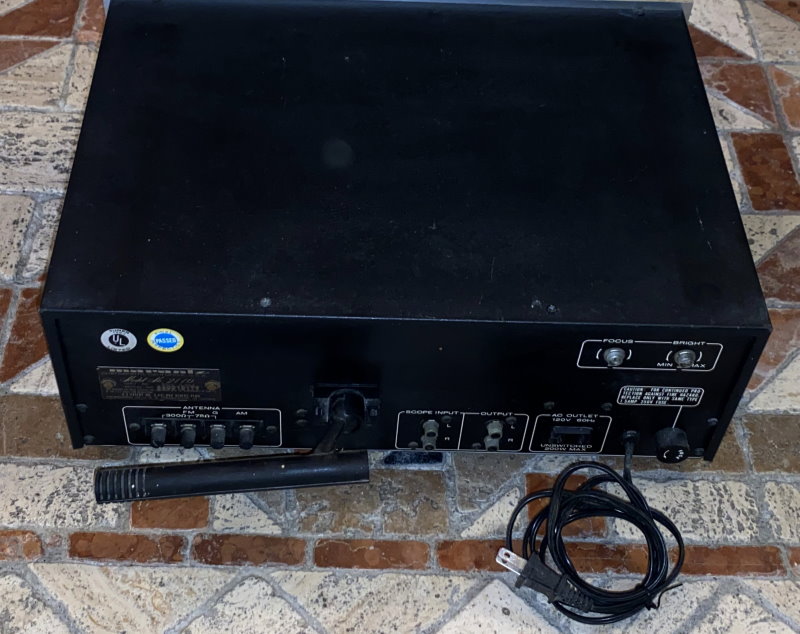

FM switch. The 2110 also features Scope Inputs, so that you could use this unit
to view the scope on any other audio signal.
The tuner is in excellent working condition including all tuner dial lights and
Stereo light. The tuner has strong reception and very clean Marantz sound.
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
FM Tuning Range: 87.5 to 108 MHz
MW Tuning Range: 515 to 1650 kHz
Sensitivity: 1.4uV (FM), 25uV (MW)
Signal to Noise Ratio: 64dB (FM), 60dB (MW)
Distortion: 0.17% (FM), 0.5% (MW)
Selectivity: 75dB (FM), 46dB (MW)
Frequency response: 30Hz to 15kHz (FM), 40Hz to 2.6kHz (MW)
Output: 560mV (FM)

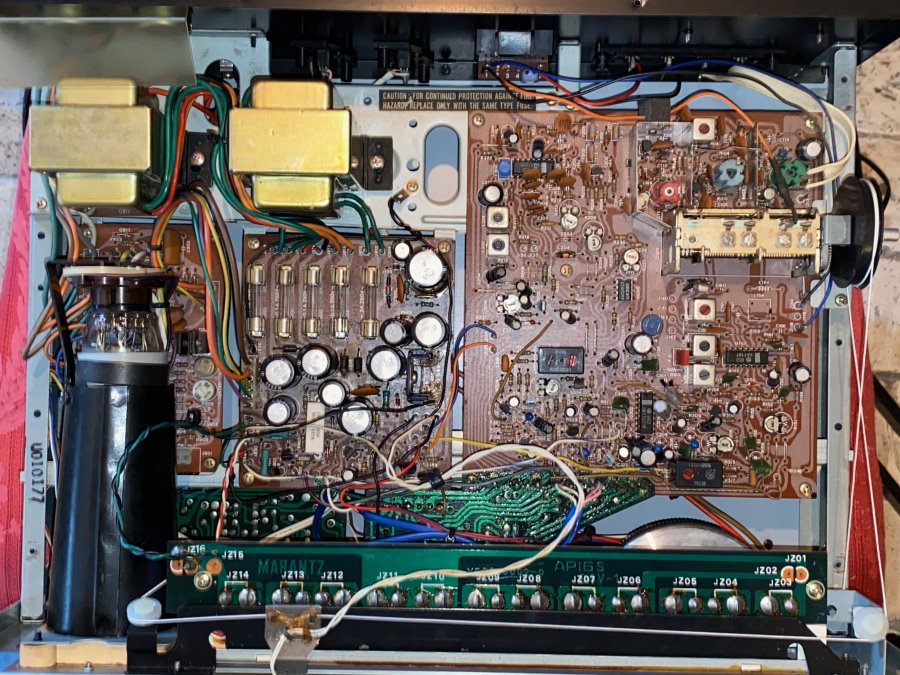

Semiconductors: 4 x IC, 20 x transistors, 19 x diodes, 5 x FET
Dimensions: 416 x 146 x 301mm
