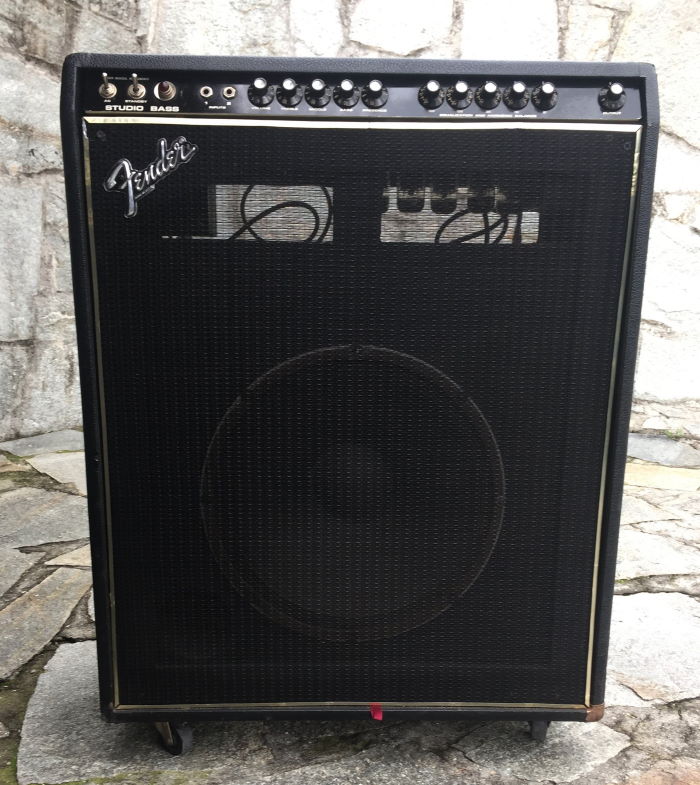

FENDER STUDIO BASS 200 watts RMS 1X15" Excellent Cond. Code AM45

All new tube power matched, perfect ready to play

 Combo Years of Production: 1977–1980 - Dimensions: ht 35″ width 26″. Depth 12.5″

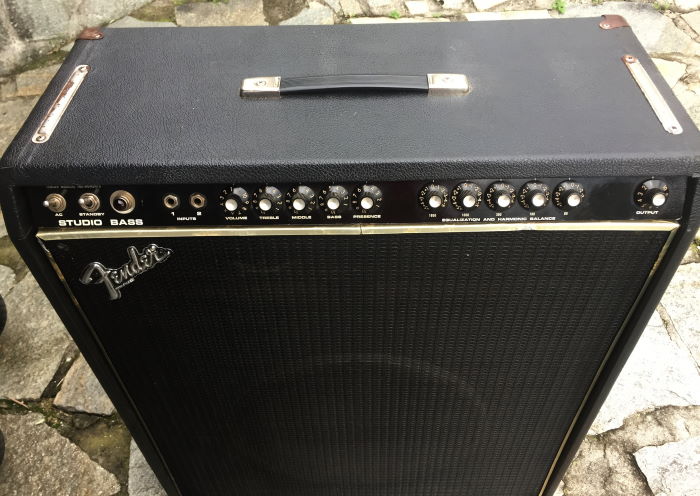

Controls: Black Forward facing with white labels Knobs: Black skirted w/ chrome center, numbered 1 – 10 (EQ knobs numberd -5 to +5)
Front: Power Sw, Standby Sw, Pilot Lamp – In, In, Vol, Treb, Mid, Bass, Presence – 1850 Hz, 1000 Hz, 390 Hz, 180 Hz, 80 Hz – Output

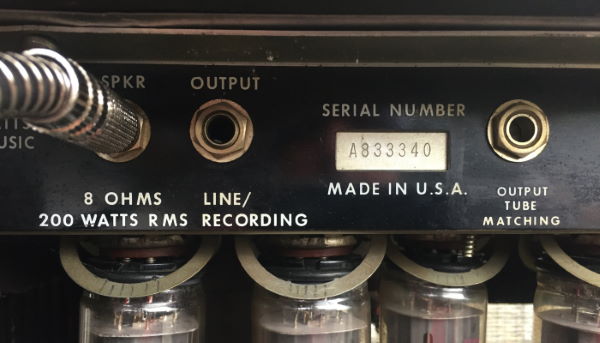

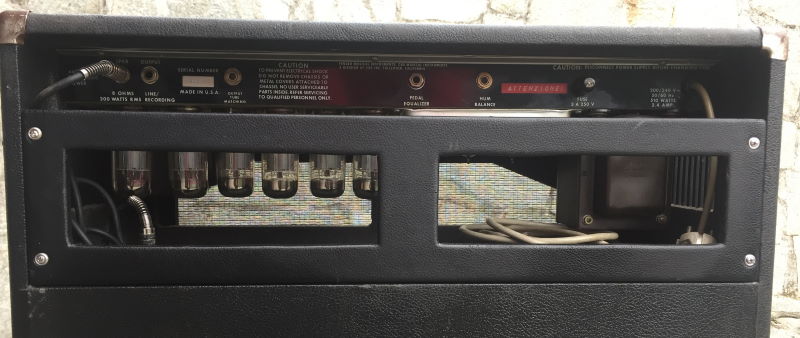

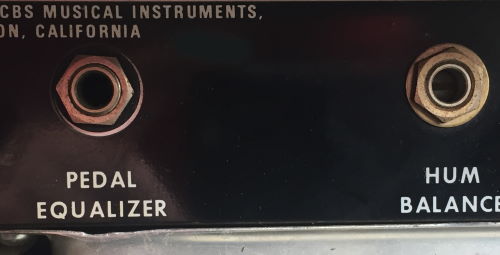

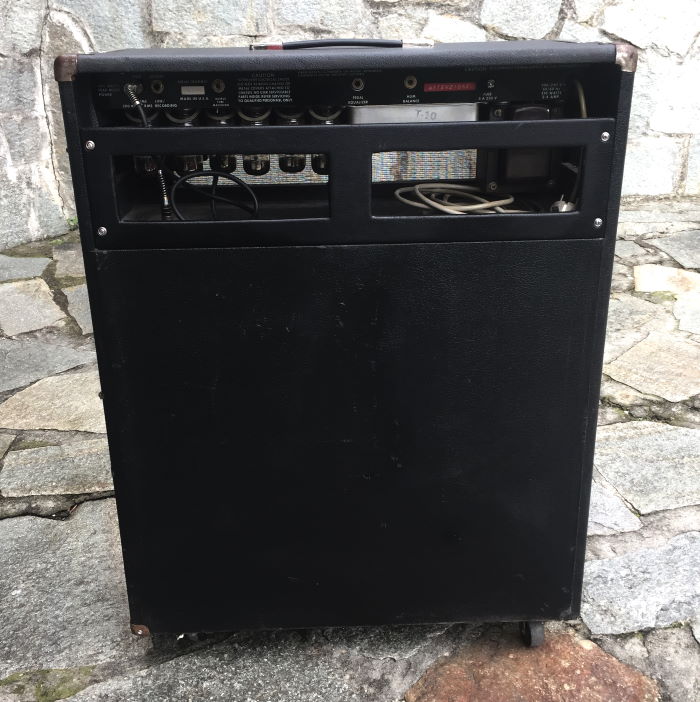

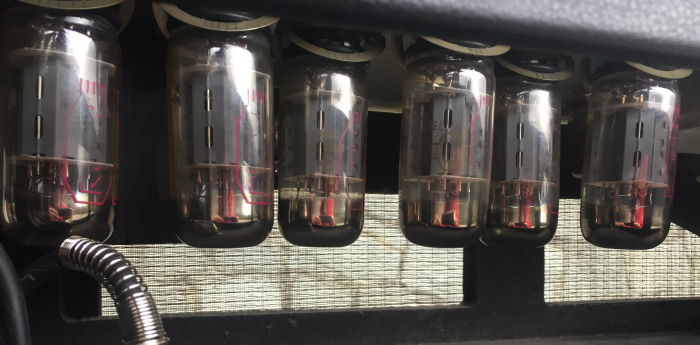

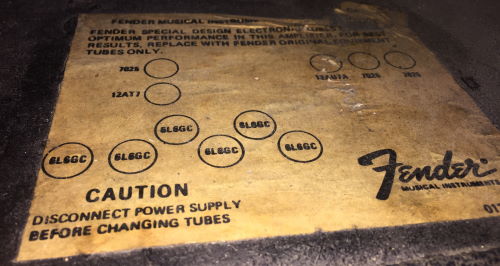

Rear: Speaker Jack,  Jack, Hum Balance Adj,  Jack, Output Tubes Matching Adj, Fuse (3A) Speaker jack, line out,output tube matching pot, pedal equalizer , hum balance pot, power out (3 prong)’ fuse, ground switch Speaker Size: 1 x 15 Electro Voice Impedance: 8 ohms Effects: Active EQ ~Watts: 200 watts Tubes Pre amp: 2 x 7025 Power: 6 x 6L6GBias: Fixed Bias Rectifier: Solid State Active EQ: 12AU7

TEST:
https://www.youtube.com/watch?v=P4mHd0xrMAM
